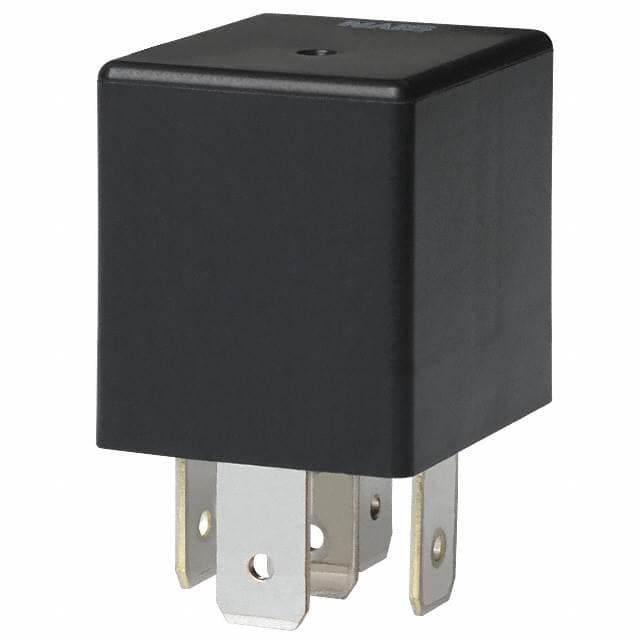

CB1F-12V Image Image may be representation.
See specs for product details.
CB1F-12VPanasonic Electric Works RELAY AUTOMOTIVE SPDT 40A 12V
Part NumberCB1F-12V
Package
ManufacturerPanasonic
RoHs StatusRoHS Compliant
Manufacturer Part NumberPanasonic Electric Works-CB1F-12V
DescriptionRELAY AUTOMOTIVE SPDT 40A 12V
In stock8567
Data sheet
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 8567 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - CB1F-12V
  • CB1F-12V Tech Specifications
    Panasonic Electric Works - CB1F-12V technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electric Works - CB1F-12V
    Manufacturer Panasonic
    Termination Style Plug In, Quick Connect - 0.250" (6.3mm)
    Switching Voltage 14VDC - Nom
    Series CB
    Release Time 15 ms
    Package Bulk
    Operating Temperature -40°C ~ 85°C
    Operate Time 15 ms
    Must Release Voltage 1.2 VDC
    Must Operate Voltage 7 VDC
    Mounting Type Socketable
    Features Sealed - Flux Protection
    Contact Rating (Current) 40 A
    Contact Material Silver Alloy, Cadmium Free
    Contact Form SPDT (1 Form C)
    Coil Voltage 12VDC
    Coil Type Non Latching
    Coil Resistance 103 Ohms
    Coil Power 1.4W
    Coil Current 117 mA
    Base Product Number CB1F
  • TheCB1F-12Vis a Relays component, full developed and mass-produced by Panasonic Electric Works manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is RELAY AUTOMOTIVE SPDT 40A 12V and it falls under the category of Automotive Relays, with Manufacturer of Panasonic and Termination Style of Plug In, Quick Connect - 0.250" (6.3mm) and Switching Voltage of 14VDC - Nom. Efficient purchasing through Panasonic-IC.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for CB1F-12V or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute CB1F-D-WM-12V CB1F-D-M-12V CB1F-D-12V CB1F-D-SM-12V
Part Number CB1F-D-WM-12V CB1F-D-M-12V CB1F-D-12V CB1F-D-SM-12V
Manufacturer Panasonic Electric Works Panasonic Electric Works Panasonic Electric Works Panasonic Electric Works
Series - * * *
Coil Voltage - - - -
Base Product Number - - - -
Features - - - -
Switching Voltage - - - -
Coil Current - - - -
Contact Form - - - -
Release Time - - - -
Operate Time - - - -
Operating Temperature - - - -
Coil Type - - - -
Termination Style - - - -
Must Release Voltage - - - -
Contact Material - - - -
Mounting Type - - - -
Contact Rating (Current) - - - -
Package - Bulk Bulk Bulk
Must Operate Voltage - - - -
Coil Resistance - - - -
Coil Power - - - -
