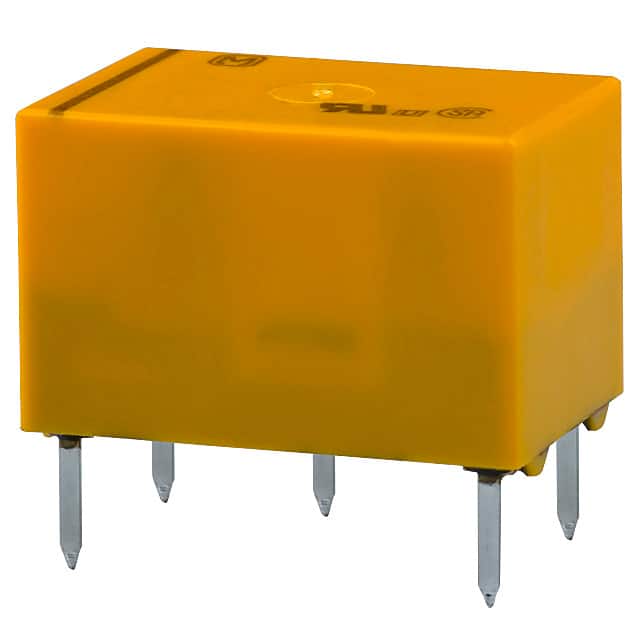

DS1E-M-DC12V-TB Image Image may be representation.
See specs for product details.
DS1E-M-DC12V-TBPanasonic Electric Works RELAY GEN PURPOSE SPDT 2A 12VDC
Part NumberDS1E-M-DC12V-TB
Package
ManufacturerPanasonic
RoHs Status
Manufacturer Part NumberPanasonic Electric Works-DS1E-M-DC12V-TB
DescriptionRELAY GEN PURPOSE SPDT 2A 12VDC
In stock4255
Data sheet
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 4255 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - DS1E-M-DC12V-TB
  • DS1E-M-DC12V-TB Tech Specifications
    Panasonic Electric Works - DS1E-M-DC12V-TB technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electric Works - DS1E-M-DC12V-TB
    Manufacturer Panasonic
    Termination Style PC Pin
    Switching Voltage 250VAC, 220VDC - Max
    Series DS
    Seal Rating Sealed - Fully
    Release Time 5 ms
    Relay Type General Purpose
    Package Tube
    Operating Temperature -40°C ~ 70°C
    Operate Time 10 ms
    Must Release Voltage 1.2 VDC
    Must Operate Voltage 8.4 VDC
    Mounting Type Through Hole
    Features -
    Contact Rating (Current) 2 A
    Contact Material Silver (Ag), Gold (Au)
    Contact Form SPDT (1 Form C)
    Coil Voltage 12VDC
    Coil Type Non Latching
    Coil Resistance 360 Ohms
    Coil Insulation -
    Coil Current 33.3 mA
    Base Product Number DS1E
  • TheDS1E-M-DC12V-TBis a Relays component, full developed and mass-produced by Panasonic Electric Works manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is RELAY GEN PURPOSE SPDT 2A 12VDC and it falls under the category of Signal Relays, Up to 2 Amps, with Manufacturer of Panasonic and Termination Style of PC Pin and Switching Voltage of 250VAC, 220VDC - Max. Efficient purchasing through Panasonic-IC.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for DS1E-M-DC12V-TB or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute DS1E-M-DC24V-TB DS1E-M-DC12V-R DS1E-M-DC48V-TB DS1E-ML-DC12V
Part Number DS1E-M-DC24V-TB DS1E-M-DC12V-R DS1E-M-DC48V-TB DS1E-ML-DC12V
Manufacturer Panasonic Electric Works Panasonic Electric Works Panasonic Electric Works Panasonic Electric Works
Must Release Voltage - - - -
Coil Current - - - -
Coil Resistance - - - -
Relay Type - - - -
Mounting Type - - - -
Release Time - - - -
Features - - - -
Termination Style - - - -
Contact Material - - - -
Contact Rating (Current) - - - -
Coil Voltage - - - -
Operating Temperature - - - -
Series - * * *
Must Operate Voltage - - - -
Package - Bulk Bulk Bulk
Contact Form - - - -
Switching Voltage - - - -
Coil Type - - - -
Operate Time - - - -
Seal Rating - - - -
Base Product Number - - - -
Coil Insulation - - - -
