HomeProductsResistorsChip Resistor - Surface MountERA-8AEB203V

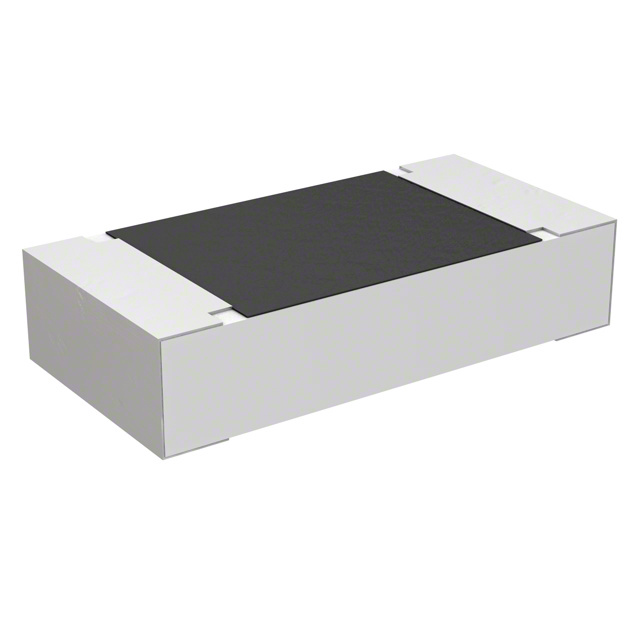

ERA-8AEB203V Image Image may be representation.
See specs for product details.
ERA-8AEB203VPanasonic RES SMD 20K OHM 0.1% 1/4W 1206
Part NumberERA-8AEB203V
Package1206 (3216 Metric)
ManufacturerPanasonic
RoHs StatusLead free / RoHS Compliant
Manufacturer Part NumberPanasonic-ERA-8AEB203V
DescriptionRES SMD 20K OHM 0.1% 1/4W 1206
In stock117845
Data sheet
1.ERA-8AEB203V.pdf 2.ERA-8AEB203V.pdf 3.ERA-8AEB203V.pdf 4.ERA-8AEB203V.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 117845 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - ERA-8AEB203V
  • ERA-8AEB203V Tech Specifications
    Panasonic - ERA-8AEB203V technical specifications, attributes, parameters and parts with similar specifications to Panasonic - ERA-8AEB203V
    Manufacturer Panasonic
    Tolerance ±0.1%
    Temperature Coefficient ±25ppm/°C
    Supplier Device Package 1206
    Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
    Series ERA-8A
    Resistance 20 kOhms
    Power (Watts) 0.25W, 1/4W
    Packaging Cut Tape (CT)
    Package / Case 1206 (3216 Metric)
    Other Names P20KBCCT
    Operating Temperature -55°C ~ 155°C
    Number of Terminations 2
    Moisture Sensitivity Level (MSL) 1 (Unlimited)
    Manufacturer Standard Lead Time 23 Weeks
    Lead Free Status / RoHS Status Lead free / RoHS Compliant
    Height - Seated (Max) 0.028" (0.70mm)
    Features Automotive AEC-Q200
    Failure Rate -
    Detailed Description 20 kOhms ±0.1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thin Film
    Composition Thin Film
  • TheERA-8AEB203Vis a Resistors component, full developed and mass-produced by Panasonic manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is RES SMD 20K OHM 0.1% 1/4W 1206 and it falls under the category of Chip Resistor - Surface Mount, with Manufacturer of Panasonic and Tolerance of ±0.1% and Temperature Coefficient of ±25ppm/°C. Efficient purchasing through Panasonic-IC.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for ERA-8AEB203V or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute ERA-8AEB2053V ERA-8AEB2103V ERA-8AEB2051V ERA-8AEB204V
Part Number ERA-8AEB2053V ERA-8AEB2103V ERA-8AEB2051V ERA-8AEB204V
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Power (Watts) - - - -
Number of Terminations - - - -
Moisture Sensitivity Level (MSL) - - - -
Lead Free Status / RoHS Status - - - -
Operating Temperature - - - -
Height - Seated (Max) - - - -
Size / Dimension - - - -
Manufacturer Standard Lead Time - - - -
Series - * * *
Temperature Coefficient - - - -
Resistance - - - -
Package / Case - - - -
Failure Rate - - - -
Supplier Device Package - - - -
Other Names - - - -
Detailed Description - - - -
Composition - - - -
Features - - - -
Tolerance - - - -
Packaging - - - -
